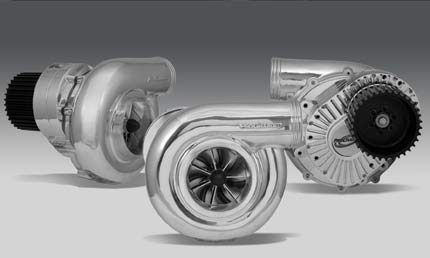

PROCHARGER F-3R-112 SUPERCHARGER HEAD UNIT:
- Base HP Range of NA Engine: 500 – 850 HP
- Maximum Supercharged HP Rating: 2,400 HP
- Maximum Airflow: 3,100 cfm
- Maximum Boost: 40 psi
- Inlet Diameter: 5 inches
- Outlet Diameter: 4 inches
- Maximum Impeller RPM: 72,000
- Internal Step-up Ratio: 5.63:1
- Self-Contained Oiling: Yes
- Reverse Rotation Available: Yes
