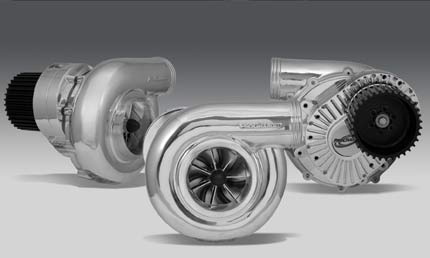

PROCHARGER F-3R-112 SUPERCHARGER HEAD UNIT:
- Base HP Range of NA Engine: 450 – 800 HP
- Formerly referred to as the F-1X-12
- Maximum Supercharged HP Rating: 2,100 HP
- Maximum Airflow: 2,300 cfm
- Maximum Boost: 38 psi
- Inlet Diameter: 5 inches
- Outlet Diameter: 4 inches
- Maximum Impeller RPM: 72,000
- Internal Step-up Ratio: 5.63:1
- Self-Contained Oiling: Yes
- Reverse Rotation Available: Yes
