• Sale
  • Regular price $1,260.95

Trust. Whether it's your engine builder, team members, or EFI System, trust is earned, not given.

When your expensive engine, sponsorship and reputation are on the line, trust your engine monitoring to the Holley EFI 6.86" Pro Dash!

The Holley EFI 6.86" Pro Dash is customizable with a variety of gauge and indicator screens that can be programmed to display any parameter you need from a Holley EFI system. It also includes an integrated ten LED shift light as well as two LED's on the top left and two on the top right that can be programmed as desired.

Holley's new 6.86" Pro Dash delivers over 200 monitoring channels of reliable real-time data in a more compact, full HD package suitable for nearly any motorsports application.
Be assured that the Holley EFI 6.86" Pro Dash will deliver the vitals you need!

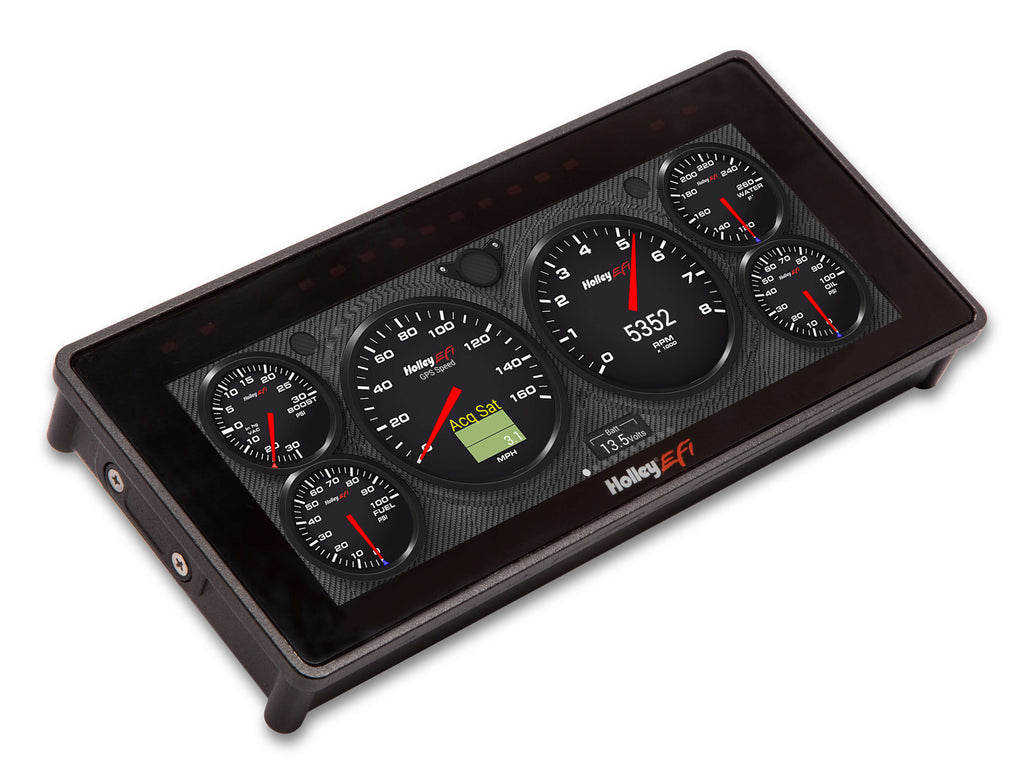

The 6.86" Pro Dash is completely customizable for use in a variety of motorsports applications. It features a 6.86" 1280x480 resolution low glare, high brightness, high contrast, full-color capacitive touch screen for easy viewing even in the sun, plug and play connection to all Holley EFI systems as well as a weatherproof aluminum housing featuring flexible mounting options. Monitor the power of your Holley EFI system at a glance! Holley EFI 6.86" Pro Dash includes everything needed for installation!

The Holley EFI 6.86" Pro Dash also features a plethora of inputs and outputs for expanded functionality of your Holley EFI installation. The included 34pin connector has 13 multi-configurable inputs for most Holley EFI sensors, such as pressure and temperature. Not using Holley EFI sensors? We still have you covered, these inputs are configurable, allowing you to utilize different sensor scaling calibrations! The Pro Dash also features two dedicated speed inputs, for RPM, Driveshaft speed, or any other Hall effect speed input. Need more outputs? The Pro Dash contains 4 ground switched outputs, that can be utilized with the switch panel feature to quickly turn on any of your auxiliary accessories, such as a master nitrous switch, or an electric water pump.

We have also integrated a 10-LED Programmable shift light into the bezel of the dash and added 4 optional LED's that can be programmed for virtually anything, such as fuel pressure or oil pressure warning indicators, or a target boost indicator, the options are almost endless.
Plug-and-play Display support for Dominator, HP, Terminator X & Sniper EFI
Integrated a 10-LED Programmable shiftlight w/ 4-LED warning indicators for other sensor inputs.
Capable of monitoring up to 238 real-time values such as RPM/TPS/Boost
10 default background skins pre-loaded with unlimited options for importing custom layouts
Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)
Virtual switch panel eliminates the need for external toggle switches
Manual or auto-brightness features for easy viewing day or night
Built-in GPS with odometer function (Antenna included)
On-screen datalog playback features allows you to review vital run information
Expandable storage via USB
No stylus required, capacitive touch, just like your smart phone.
User definable channel alarms and warnings
4x 10-32 mounting holes for surface or flush mounting, with high quality hardware included!
Includes everything needed for installation!
USB Keyboard and Mouse functionality makes it quick and easy to setup new layouts

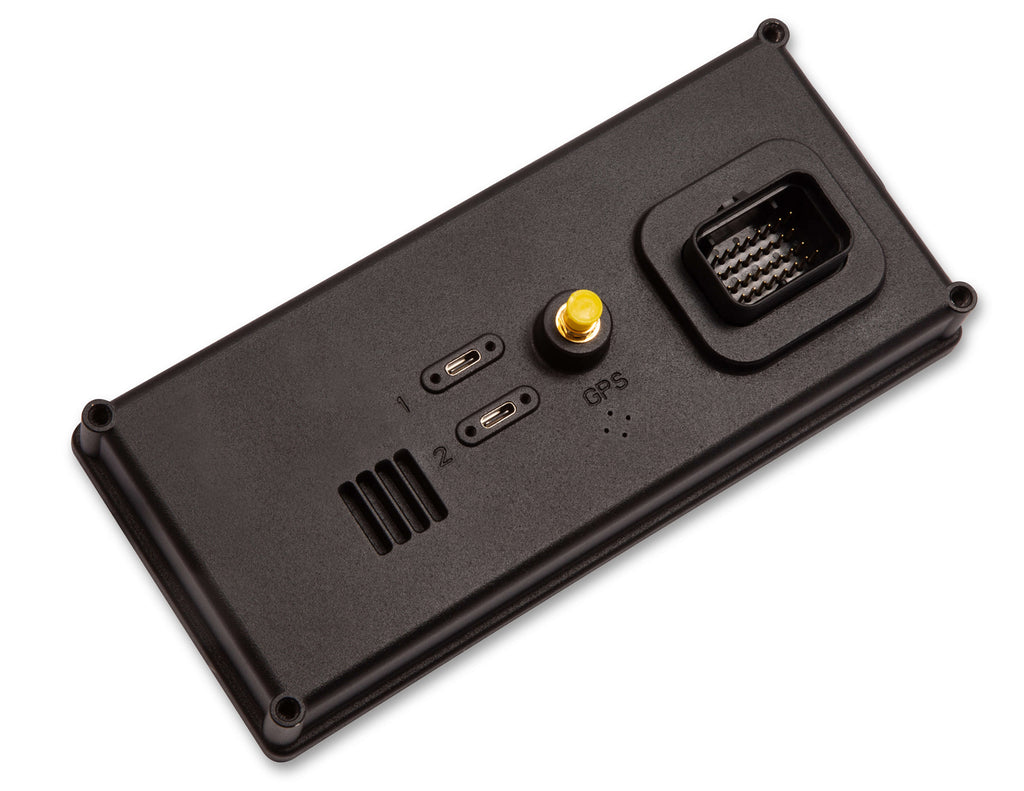

Includes 34 Pin Wiring Harness contains Power, Ground and CANbus connections
Input and output functionality for 13 multi-configurable inputs, and 4 ground switched outputs.
User defined alarms for any input
Upgradable with future software enhancements
Viewing area is 6.86" on the diagonal
Dash weight - 1.2 Lbs
Real-time ECU tuning - HP/Dominator ECUs only
