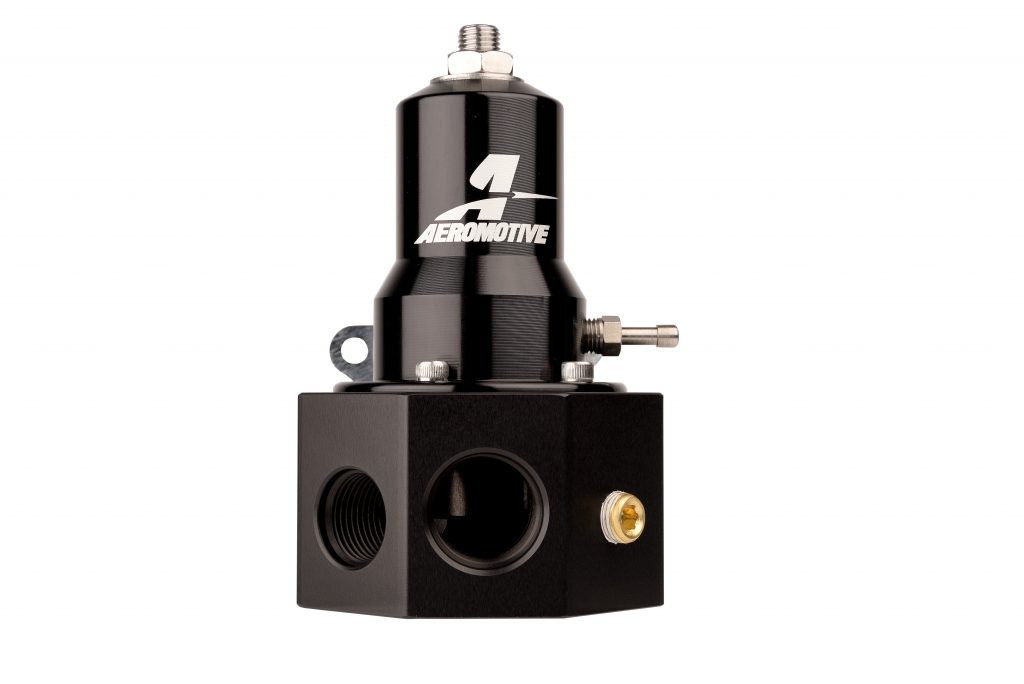

Pro-Series EFI Regulator

  • Sale
  • Regular price $429.95


The tuner's choice for high horsepower EFI applications. The Pro-Series Regulator
can support up to 2000 HP. For engines requiring high volume, high pressure fuel
delivery the Pro-Series Boost Reference EFI Regulator is a perfect fit for serious power.

Adjustable base pressure from 30-75 PSI with the spring installed.
Adjustable base pressure from 75-125 PSI with the optional spring included.
Ideal for Pro-Series, Brushless 3.5 and Brushless 5.0 Electric Pumps using the 30-75 PSI spring.
Suitable for 6-GPM mechanical pumps using both the standard and high pressure spring.
Auxiliary ports available for nitrous applications, pressure gauges and transducers.
References Vacuum/Boost on a 1:1 ratio. Includes two boost line adapters,
one barbed for rubber hose, the other for AN-04 braided line. (Prevents blow-off in high boost applications)
Dedicated 1/8” NPT port.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Includes Aeromotive’s radiused tapered flare fittings:
(3) ORB-08 and (1) ORB-10 inlet ports, two with AN-08 flare adapters.
(1) ORB-10 return port with AN-10 flare adapter port plugs included.
Virtually indestructible electroless nickel-plating finish on the body with type II bright dip black anodized cap
